When to Use Double Deep Pallet Racking in Warehouse Design
Double deep pallet racking is a high-density storage system designed to significantly increase warehouse storage capacity by placing pallets two positions deep instead of one. It is widely used in modern logistics centers, manufacturing warehouses, and distribution hubs where space optimization is more important than direct pallet access.
However, choosing this system is not always straightforward. Understanding when to use double deep pallet racking is critical for balancing storage efficiency, operational speed, and equipment requirements.
Understanding How Double Deep Pallet Racking Works

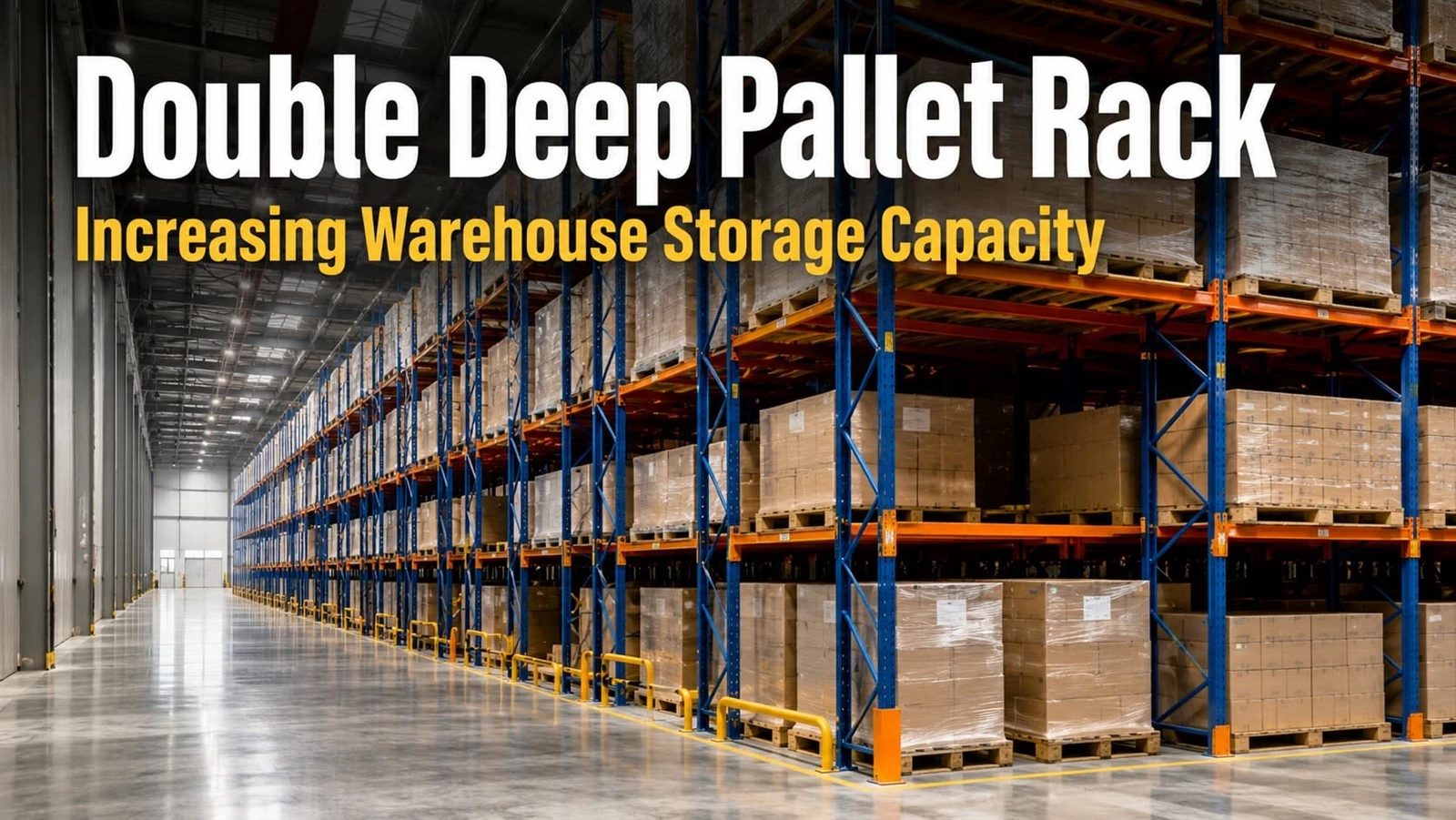

In a double deep pallet racking system, pallets are stored two rows deep on each side of the aisle. This means the rear pallet is not directly accessible and must be retrieved after the front pallet is removed.
This storage method follows a LIFO (Last In, First Out) principle, making it more suitable for controlled inventory environments rather than fast-moving consumer goods.
To operate efficiently, the system requires specialized reach trucks or double deep forklifts with extended fork arms.
When Should You Use Double Deep Pallet Racking?
You should consider using double deep pallet racking when your warehouse has the following conditions:
- High cost of warehouse space and need for maximum storage density
- Medium SKU variety with controlled inventory rotation
- Stable inventory that does not require frequent direct access
- Availability of suitable reach trucks or deep reach forklifts
- Operations that prioritize storage capacity over picking speed
For example, cold storage warehouses, bulk distribution centers, and manufacturing storage zones often benefit from this system.
Key Advantages of Double Deep Pallet Racking
Double deep pallet racking offers several important advantages that make it popular in high-density warehouse design:
1. Increased Storage Capacity
Compared to selective pallet racking, double deep systems can increase storage capacity by up to 30–40% without expanding warehouse footprint.
2. Better Space Utilization
By reducing the number of aisles required, warehouses can dedicate more floor space to storage rather than circulation.
3. Cost Efficiency
Instead of building new warehouse space, companies can maximize existing vertical and horizontal space, reducing infrastructure investment.
4. Suitable for Medium Turnover Inventory
This system works best when inventory turnover is predictable and does not require frequent SKU-level access.
Limitations of Double Deep Pallet Racking
Despite its advantages, this system also has limitations that must be carefully considered:
- Reduced accessibility to individual pallets
- Requires specialized forklifts and operator training
- Not suitable for FIFO inventory systems
- Slower picking speed compared to selective racking
These limitations mean it is not ideal for e-commerce fulfillment centers or high SKU diversity warehouses.
Double Deep vs Selective Pallet Racking
Understanding the difference between double deep and selective pallet racking is essential for choosing the right system.
Selective pallet racking provides 100% direct access to all pallets, making it ideal for fast-moving goods. However, it requires more aisle space and reduces storage density.
Double deep pallet racking sacrifices direct access in exchange for significantly higher storage density.
For a detailed comparison, visit: Selective Pallet Racking System
Warehouse Design Considerations
Before implementing a double deep pallet racking system, several design factors must be evaluated:
- Forklift type and aisle width requirements
- Load weight and pallet dimensions
- Warehouse ceiling height and vertical utilization
- Inventory rotation strategy (FIFO or LIFO)
- Future scalability requirements
A professional warehouse layout design can significantly improve efficiency and reduce long-term operational costs.
Industry Applications
Double deep pallet racking is widely used in several industries:
- Cold storage and food distribution
- Manufacturing raw material storage
- Wholesale distribution centers
- Industrial spare parts warehouses
- 3PL logistics warehouses
Conclusion
Double deep pallet racking is an excellent solution for warehouses that prioritize storage density over direct access. It is most effective in environments with stable inventory, medium SKU variety, and available reach truck systems.
When properly designed, it can significantly improve warehouse efficiency and reduce storage costs without expanding building size.
