China Pallet Flow Rack Manufacturer for FIFO Warehouse Storage Solutions



JINHUI RACKING is a professional pallet flow rack manufacturer in China, providing customized gravity flow racking systems for high-density FIFO warehouse storage. From pallet flow lane design and rack configuration to manufacturing and export delivery, we support projects with reliable quality and flexible customization.

✔ Factory Direct Price    ✔ Custom Warehouse Design    ✔ Exported to 50+ Countries    ✔ Fast Delivery (15–25 Days)

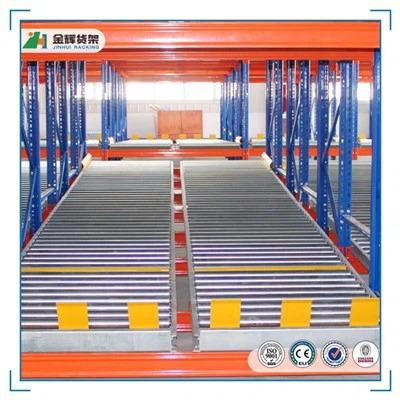

  • Pallet Flow System
    Production Name:Pallet Flow SystemMaterial:Steel Q235B. Size :Custom. Color:Custom. Packaging:Custom. ODM,OEM:Accepted. Certification:CE/ISO9001. Experience:Nearly 20 years.
  • Gravity Rack System
    JINHUI RACK manufactures high-performance Gravity Rack Systems designed to maximize storage density and improve pallet flow efficiency. Using gravity-powered roller lanes, our systems support
  • Fifo Flow Rack
    FIFO Flow Rack slides on the racking slide depending on the racking gravity of the goods. The utility model relates to a storage racking with a slide (roller) installed in the storage channel of



pallet flow rack system for high density warehouse storage

What Is a Pallet Flow Rack System?



A Pallet Flow Rack System is a high-density pallet storage solution designed to improve warehouse space utilization and support efficient First In, First Out (FIFO) inventory management.



The system uses inclined roller tracks installed inside the rack lanes. When a pallet is loaded from the higher side, gravity moves it smoothly toward the picking side. This creates a controlled flow of pallets from the loading area to the unloading area.



Unlike conventional selective pallet racking, pallet flow racking separates pallet loading and picking operations. Forklifts can load pallets from one side while operators retrieve pallets from the opposite side, helping reduce handling conflicts and improve warehouse workflow.



Pallet flow racks are particularly suitable for warehouses that store large quantities of similar products and require systematic inventory rotation.

How Does Pallet Flow Racking Work?



A pallet flow rack uses gravity rollers or wheels installed on slightly inclined rails.



The basic operating process is:

  1. A forklift places a pallet at the loading side.
  2. The pallet enters the inclined flow lane.
  3. Gravity causes the pallet to move toward the opposite side.
  4. Rollers control the pallet's movement through the lane.
  5. A braking or damping system controls pallet speed when required.
  6. The pallet reaches the picking position and is ready for unloading.
  7. When the front pallet is removed, the following pallet moves forward automatically.



This operating principle allows pallets to move through the rack without requiring forklifts to enter deep storage lanes.

Pallet Flow Racking
Why Choose Pallet Flow Racking?


FIFO Inventory Management

Pallet flow racks are naturally suited to FIFO inventory rotation. New pallets are loaded from one side while older pallets are picked from the opposite side.

Better Storage Density

By reducing the number of conventional aisles required, pallet flow racking can provide higher storage density than standard selective pallet racking.

Faster Pallet Handling

Gravity-assisted pallet movement reduces the need for forklifts to travel deep into storage lanes, helping improve loading and unloading efficiency.

Separate Loading and Picking Areas

The loading and picking sides are separated, allowing different warehouse activities to take place simultaneously and reducing operational conflicts.

Reduced Forklift Movement

Forklifts do not need to enter every storage lane. This can reduce unnecessary travel and help minimize potential rack damage.

Organized Inventory Flow

Pallets move in a controlled direction through each lane, making inventory organization easier and supporting consistent warehouse operations.





Technical Specifications





Item Specification
Product Name Pallet Flow Rack System
System Type Gravity Flow / FIFO
Material Structural Steel
Load Capacity Customized
Rack Height Customized
Lane Depth Customized
Roller Type Gravity Roller
Surface Treatment Powder Coating
Color Customized RAL Colors
Pallet Type Standard / Customized
FIFO Operation Supported
OEM & ODM Available

Final specifications are customized according to pallet size, load capacity, warehouse layout and operating requirements.



Main Components of a Pallet Flow Rack



Main Components of a Pallet Flow Rack

A complete pallet flow rack system generally includes the following components:

Upright Frames

Heavy-duty steel frames support the overall rack structure and transfer pallet loads to the warehouse floor.

Support Beams

Horizontal beams connect the upright frames and support the pallet flow lanes.

Gravity Rollers

Rollers provide the movement surface that allows pallets to travel through the storage lane.

Damping Devices

Damping devices can be used to control pallet movement speed, particularly in longer lanes or with heavier pallet loads.

Pallet Separators

Separators help control pallet positioning at the picking end and maintain spacing between pallets.

Guide Rails

Guide rails help keep pallets aligned as they move through the lane.

Safety Components

Depending on the project, the system can include back stops, protection devices and other safety accessories.





Pallet Flow Rack Applications


01/

Food and Beverage Warehouses

FIFO operation helps maintain organized stock rotation for products with production dates or expiration requirements.

02/

Cold Storage Warehouses

High-density pallet storage helps make better use of expensive refrigerated warehouse space.

03/

Pharmaceutical Warehouses

Controlled stock rotation supports systematic inventory management.

04/

Manufacturing Facilities

Pallet flow racks can be used for raw materials, components and finished products requiring organized pallet movement.

05/

Distribution Centers

Separate loading and picking sides help improve pallet handling efficiency.

06/

Retail and FMCG Warehouses

Suitable for high-turnover products with regular stock replenishment.



Pallet Flow Rack vs Selective Pallet Rack





Feature Pallet Flow Rack Selective Pallet Rack
Inventory Method FIFO Flexible
Storage Density High Moderate
Pallet Access Front picking position Direct access to each pallet
Loading & Picking Separate sides Usually same aisle
Forklift Access Outside storage lanes Direct aisle access
Best For High-volume similar products High SKU variety
Inventory Rotation Excellent Flexible

Pallet flow racking is generally more suitable when storage density and FIFO inventory rotation are priorities.

Selective pallet racking is usually more suitable when direct access to many different SKUs is required.





How to Choose the Right Pallet Flow Rack System



A pallet flow rack should be designed according to actual warehouse conditions, pallet specifications and operating requirements rather than fixed standard dimensions.

1. Pallet Size and Weight

Pallet dimensions, bottom structure, maximum weight and load distribution should be confirmed to ensure smooth and stable movement on the rollers.

2. Required Storage Capacity

The required pallet positions, rack rows, storage levels and lane depth should be planned according to actual inventory volume.

3. Lane Depth

Lane depth should balance storage density with pallet weight, roller configuration, braking performance and stable pallet movement.

4. Warehouse Height

Available clear height determines the number of storage levels and directly affects the total pallet storage capacity.

5. FIFO Requirements

Loading and picking directions should be arranged clearly to maintain reliable first-in, first-out inventory rotation.

6. Forklift and Aisle Conditions

Forklift type, lifting height, turning radius and aisle width should be considered during the warehouse layout design.

pallet flow rack warehouse layout design and storage planning

Warehouse Layout and Engineering Support



Pallet flow racking should be integrated into the overall warehouse layout.

A professional design should consider:

  • Receiving area
  • Loading side
  • Picking side
  • Shipping area
  • Forklift travel routes
  • Aisle width
  • Warehouse columns
  • Building clear height
  • Emergency access
  • Required pallet positions
  • Future storage expansion

JINHUI RACK can provide layout planning and technical configuration support based on customer warehouse drawings and storage requirements.

Why Choose JINHUI RACK?



 Source Factory

Direct manufacturer with advanced production facilities and strict quality management systems.

 Custom Engineering

Professional engineering team providing customized warehouse storage solutions and layout designs.

 Export Experience

Rich experience serving global customers across logistics, manufacturing, retail, and industrial sectors.

 OEM & ODM Support

Flexible OEM and ODM services available for customized specifications, colors, and warehouse requirements.

 Quality Control

Strict inspection procedures from raw materials to finished products ensure stable product quality.

 Fast Delivery

Efficient production management and professional export packaging help ensure on-time global delivery.

page-1-1



Frequently Asked Questions





Q: Is pallet flow racking always FIFO?

A: Pallet flow racking is primarily designed for FIFO operation because pallets are loaded from one side and picked from the opposite side.

Q: What type of pallets can be used?

A: The suitable pallet type depends on pallet dimensions, bottom structure, weight and roller configuration. Pallet suitability should be checked during project design.

Q: How is pallet speed controlled?

A: Depending on the lane design, damping devices, brakes, rollers and pallet separators can be used to control pallet movement.

Q: Is pallet flow racking suitable for cold storage?

A: Yes. It is commonly used in cold storage because it combines high storage density with efficient FIFO inventory management.

Q: Can pallet flow racks be customized?

A: Yes. Rack height, lane depth, number of levels, pallet positions, load capacity, roller configuration and color can all be customized according to project requirements.



Get a Customized Pallet Flow Rack Solution





Need a high-density pallet storage system with efficient FIFO inventory flow?

Send us the following project information:

Our engineering team can help develop a suitable pallet flow rack layout and quotation according to your actual warehouse conditions.
