How to Level Pallet Racking: Step-by-Step Guide for Safe and Stable Storage
Proper pallet racking leveling is essential for warehouse safety and operational efficiency. Even slight misalignment can lead to uneven load distribution, increasing the risk of structural damage and pallet collapse.
If you are planning a new installation, choosing the right pallet racking system is the first step toward long-term stability and performance.
1. Why Proper Rack Leveling Matters
A level racking system ensures that loads are evenly distributed across beams and uprights. When racks are not level, stress concentrates on certain points, which can lead to deformation or failure over time.
- Improves warehouse safety
- Extends racking lifespan
- Ensures stable pallet storage
2. Common Causes of Uneven Pallet Racking
Understanding the root cause is essential before making adjustments. The most common reasons include:
- Uneven or damaged concrete floor
- Improper installation
- Overloaded shelves
- Uneven pallet weight distribution
- Forklift impacts on uprights
3. Tools Required for Leveling
Using the right tools ensures accurate alignment and long-term stability:
- Laser level or spirit level
- Measuring tape
- Wrenches and socket tools
- Steel shims (leveling plates)
- Anchor bolts
4. Step-by-Step Guide to Level Pallet Racking
Step 1: Inspect the Floor Condition
Check whether the warehouse floor is flat and free from cracks or slope issues. A weak or uneven floor must be addressed before rack installation.
Step 2: Check Rack Alignment
Use a level tool to inspect both vertical uprights and horizontal beams. Identify which sections are out of alignment.
Step 3: Insert Steel Shims
Place steel shims under the base plates of uprights to compensate for uneven floor levels. This is the most effective way to achieve precise leveling.
Step 4: Adjust and Tighten Bolts
Loosen bolts slightly, make necessary adjustments, and then re-tighten. Ensure connections are firm but not over-tightened.
Step 5: Final Inspection
Recheck the entire system using a level tool to confirm that all sections are properly aligned.

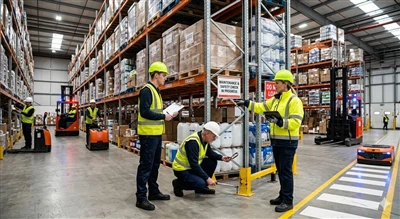

5. Maintenance Tips for Long-Term Stability
- Perform inspections every 6–12 months
- Avoid overloading racks
- Ensure even pallet placement
- Install rack protectors to reduce forklift damage
Regular maintenance helps prevent small alignment issues from becoming major structural problems.
6. Leveling vs Installation
Leveling is a critical part of installation, but it is also an ongoing maintenance task. Even properly installed racks can shift over time due to usage and floor settlement.
To improve your overall system efficiency, you can also read our pallet racking layout optimization guide .
7. Common Mistakes to Avoid
- Using plastic or low-quality shims
- Ignoring minor misalignment
- Skipping floor inspection
- Over-tightening bolts
Conclusion
Proper pallet racking leveling is essential for ensuring warehouse safety and maximizing system lifespan. By following correct procedures and conducting regular inspections, you can maintain a stable and efficient storage system.
